NOTE:
This product is in Chinese version, the original plug is Chinese plug, you can add adapter as you need, thank you.
This product version is for the China region. When adding Router, please select the Chinese server in the Mijia settings.

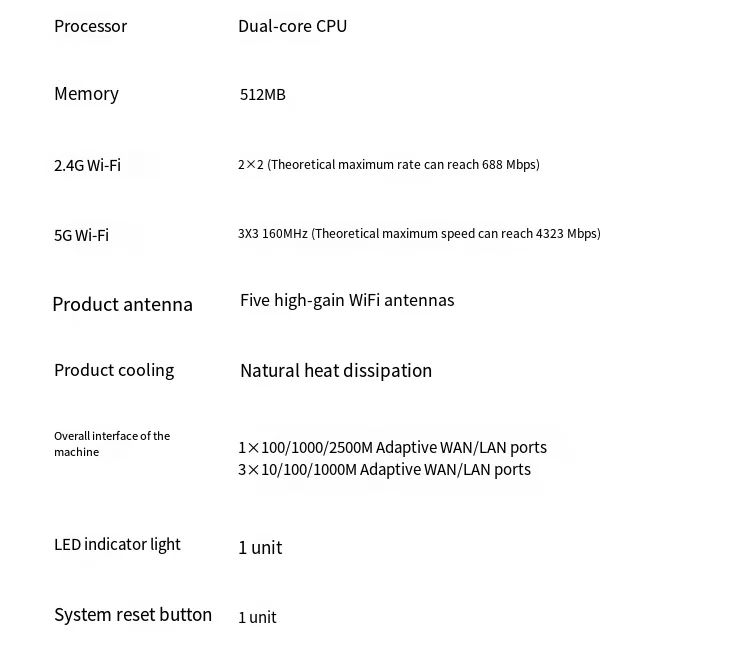

Hardware Configuration

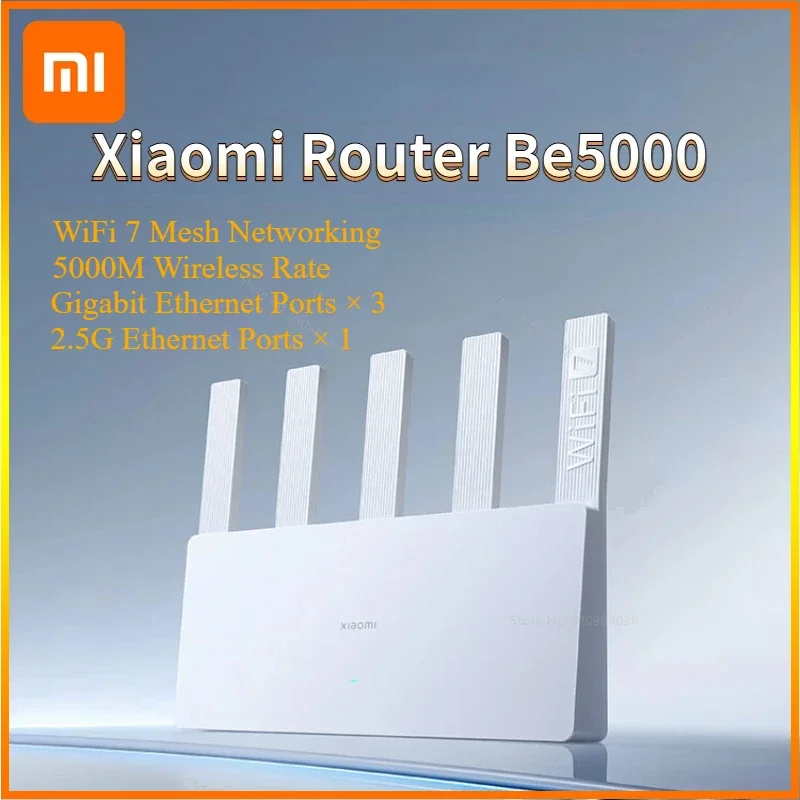

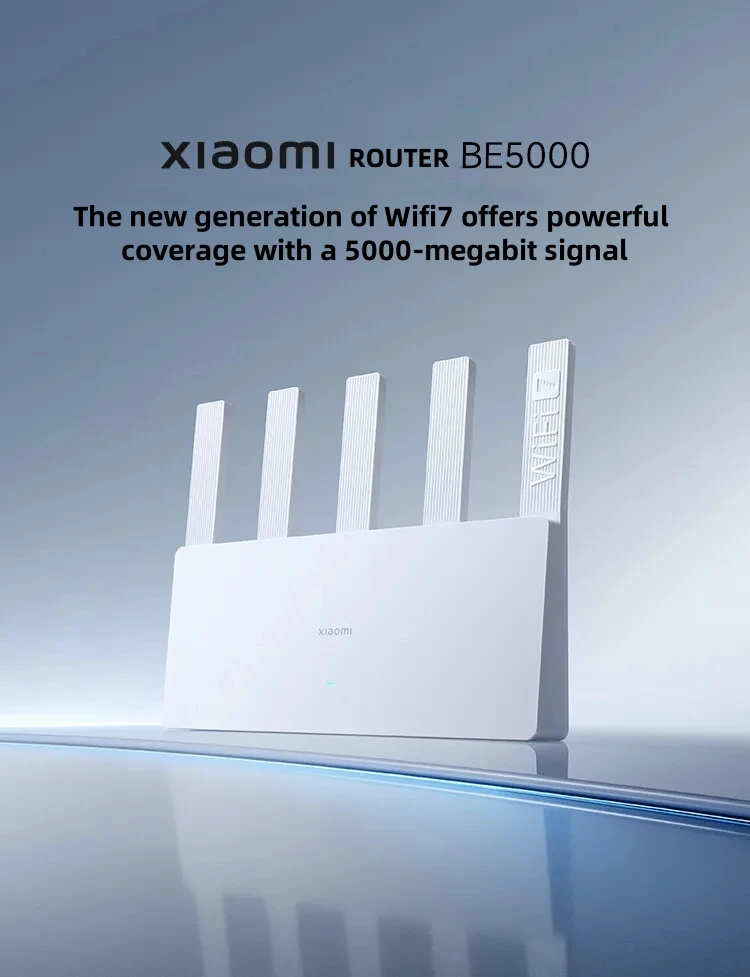

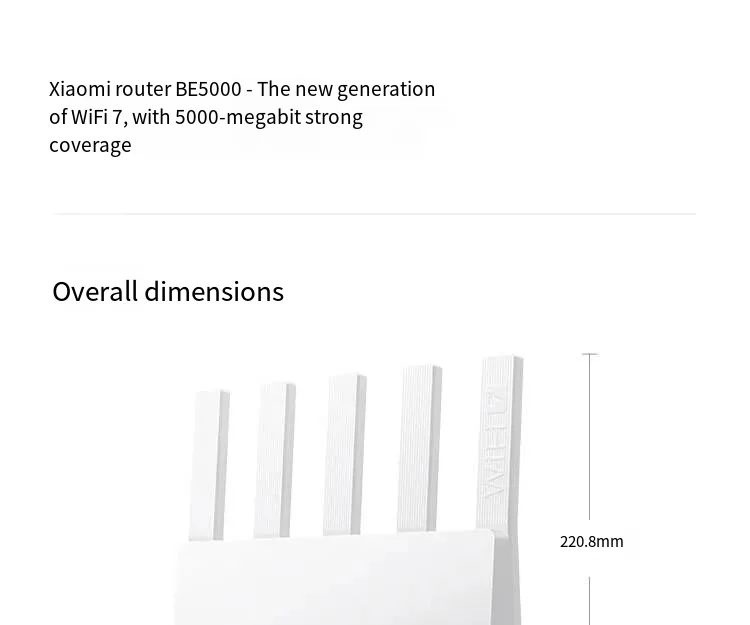

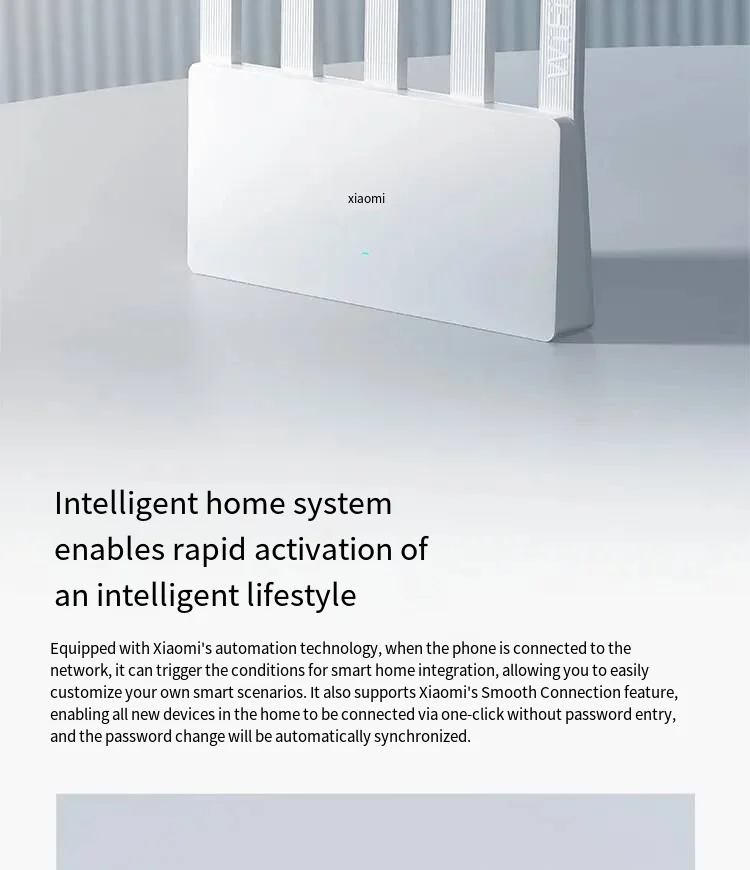

Product Name: Xiaomi Router BE5000
Processor: Dual core CPU
Memory: 512MB
2.4G Wi Fi: 2X2 (theoretical maximum speed can reach 688Mbps)
5G Wi Fi: 3X3 160MHz (theoretical maximum speed can reach 4323Mbps)

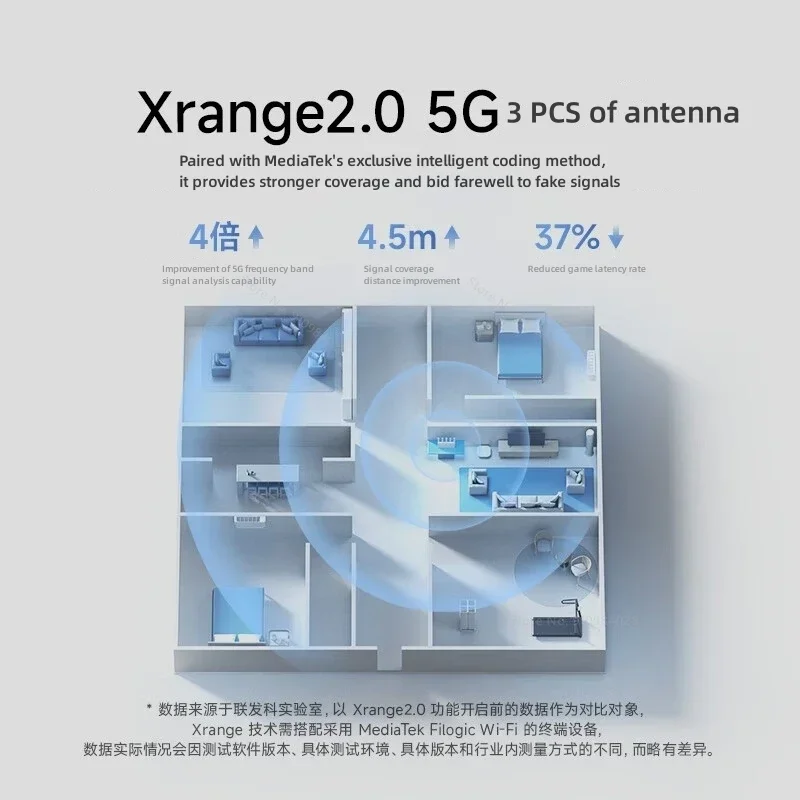

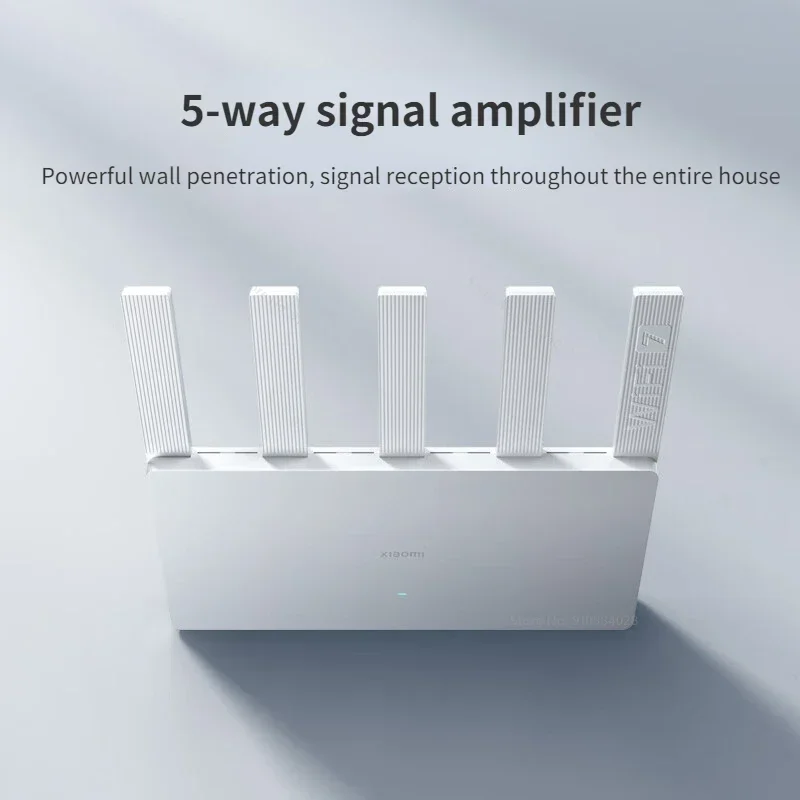

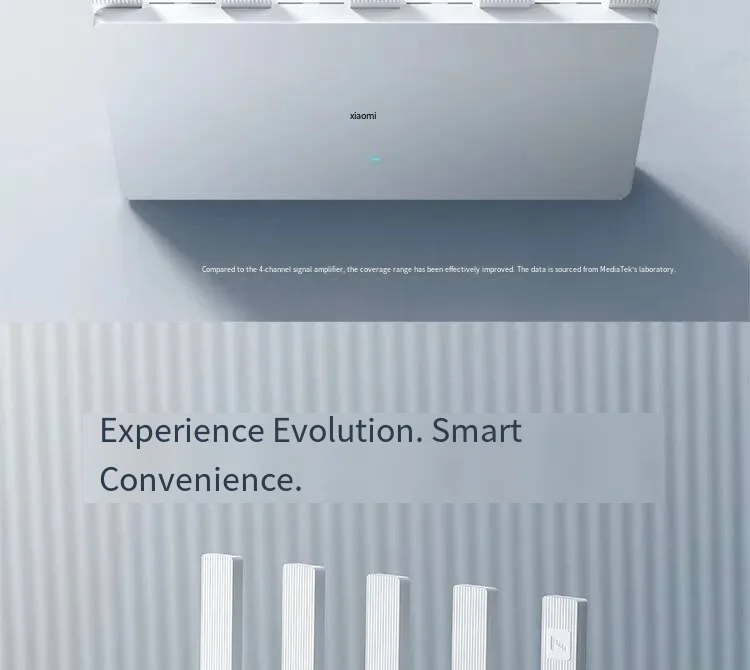

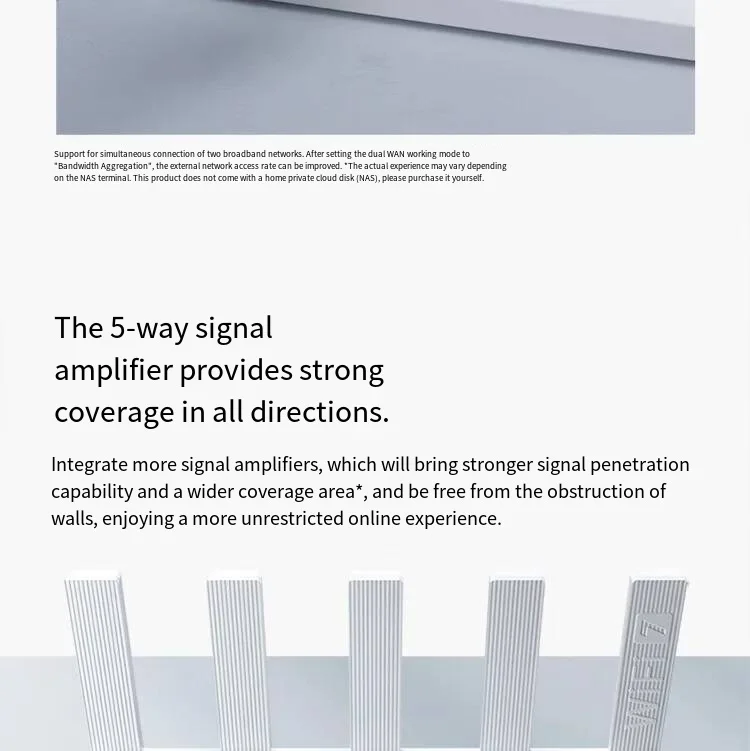

Product antenna: 5 high gain WiFi antennas
Product heat dissipation: natural heat dissipation
Machine interface:

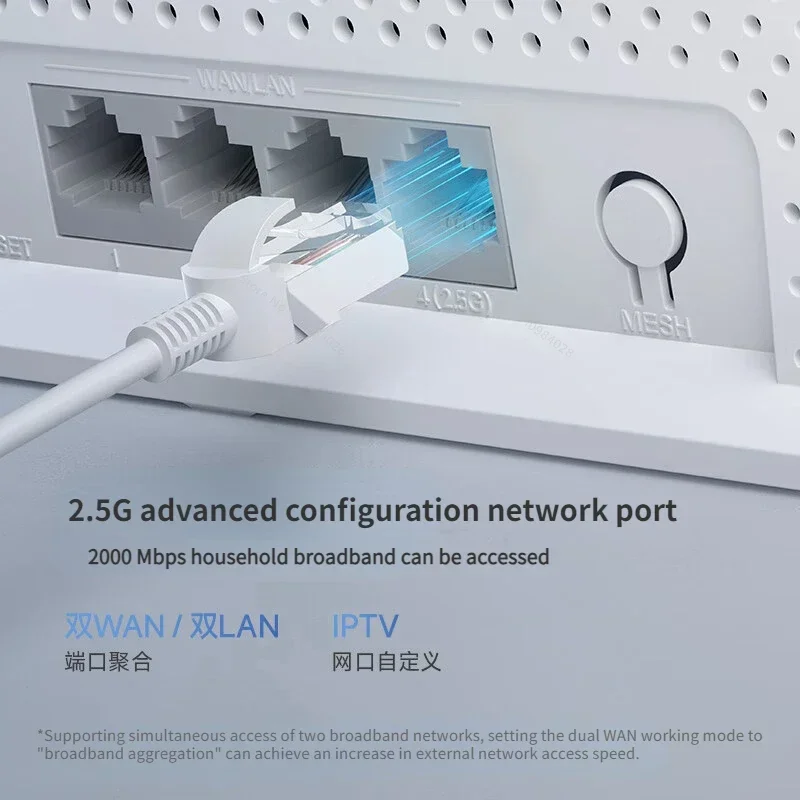

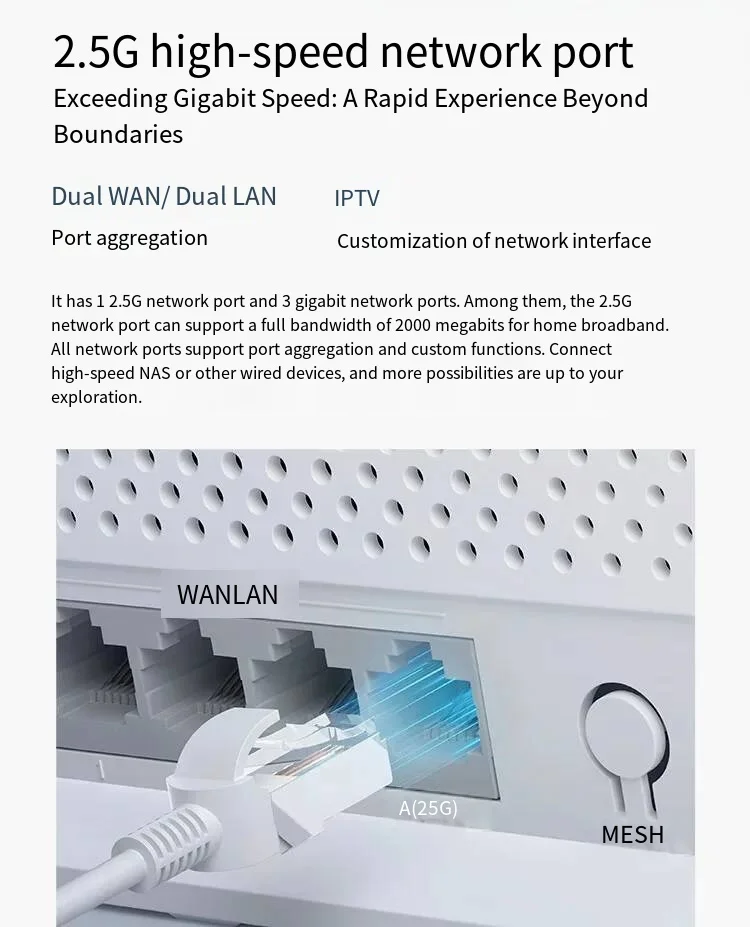

1 x 100/1000/2500M adaptive WAN/LAN port
3 x 10/100/1000M adaptive WAN/LAN port
LED indicator light : 1
System reset button: 1

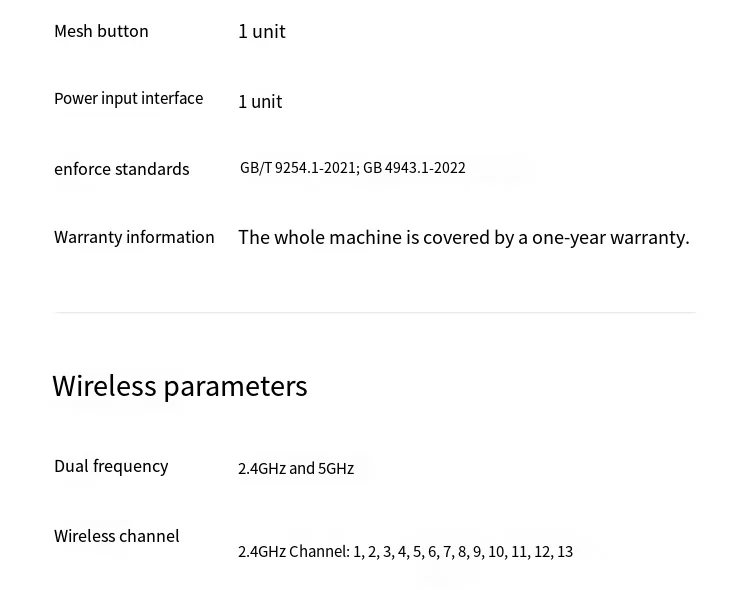

Mesh button: 1
Power input interface: 1
Executive standard: GB/T 9254.1-2021; GB 4943.1-2022
Wireless parameters
Dual frequency: 2.4GHz, 5GHz
Wireless channel:
2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11, 12,13

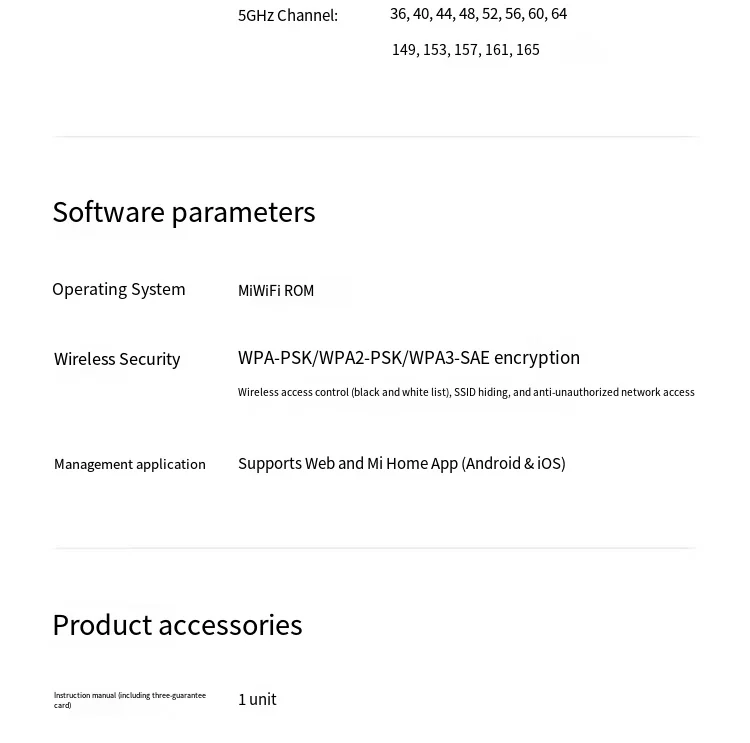

5GHz Channel: 36, 40, 44, 48, 52, 56, 60, 64149, 153, 157, 161, 165
Software parameters
Operating system: MiWiFi ROM
Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, anti phishing network
Management application: supports Web and Mi Home App (Android&iOS)

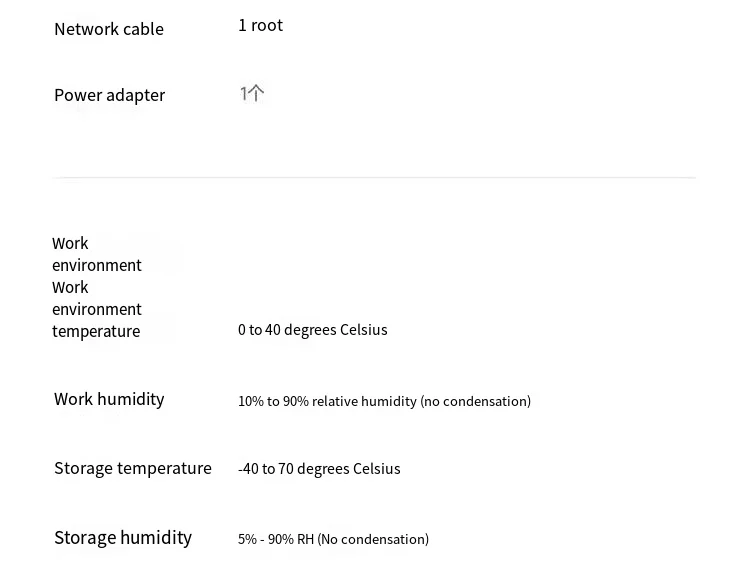

Product accessories
1*instruction manual
1*network cable
1*power adapter (CN Plug)
